Which Criteria Are Considered in Hygienic Process Piping Design?

Hygienic process piping is a piping system that enables the product or process fluid to be conveyed under suitable conditions in production processes such as food, beverage, dairy products, and pharmaceuticals. Unlike building drinking water or general mechanical installations, these systems are designed by taking into account the cleanability, drainage, and process conditions of product-contact surfaces.

In a hygienic piping project, merely determining the pipe diameter is not sufficient. The characteristics of the process fluid, operating temperature and pressure, flow rate, pipe route, valve and equipment connections, cleaning method, and drainage requirements must be evaluated together.

During design, the particular aims are to reduce areas that the cleaning fluid cannot reach in the line, to ensure proper drainage, and to prevent unnecessary interruption of product flow. Therefore, the piping geometry should be addressed not only from the perspective of assembly convenience but also from the perspective of the process’s operating and cleaning conditions.

How Is Material and Surface Selection Made in Hygienic Piping?

In hygienic process piping, material selection must be made according to the chemical properties of the process fluid, operating temperature, pressure, cleaning chemicals, and conditions of use. In addition to the pipe, valves, fittings, gaskets, and other connection elements must also be compatible with the process.

AISI 304 and AISI 316L stainless steel are among the materials widely used in hygienic process applications. AISI 316L can be evaluated especially in applications where higher corrosion resistance is required or where process conditions are not suitable for grade 304. However, material selection must be made according to the process conditions for each project.

The fact that the pipe is merely stainless steel is not sufficient on its own for hygienic design. Internal surface quality, surface roughness, weld zones, and connection geometry must also be evaluated together. Surface properties can be defined in the relevant project specification depending on the nature of the product and the cleaning procedure.

In the selection of gaskets and connection elements, process temperature, pressure, chemical cleaning conditions, and product-contact requirements must also be taken into account. In this way, all components of the piping system can be evaluated within the same hygienic design approach.

How Are ASME BPE, DIN 11850, and EHEDG Used in Hygienic Piping?

The standards to be used in hygienic process piping are determined according to the facility’s field of activity and the technical requirements of the project. Therefore, a general approach stating that a single standard is mandatory for every hygienic piping system is not correct.

ASME BPE is an important technical reference, especially in pharmaceutical, bioprocess, and high-hygiene-requirement applications, with regard to piping and equipment design, materials, surface properties, connections, and cleanability.

DIN 11850 is one of the standards used for hygienic pipes. It can be taken as a reference in relevant applications with regard to the dimensions and technical properties of pipes and connection components. Depending on the scope of the project, related standards such as DIN 11866 may also be taken into account in the selection and design of pipes and connection elements.

EHEDG is an important source that provides technical guidance on topics such as cleanability, drainage, and hygienic construction in hygienic equipment and process design. The standards and technical criteria to be applied should be determined in accordance with the nature of the process, the customer specification, and the facility’s requirements.

Why Are Dead-Legs and Pipe Slope Important for Hygienic Piping?

Dead-leg refers to connections or extensions in the pipeline that do not sufficiently benefit from the main flow and where the process or cleaning fluid may remain stagnant. Controlling these areas in hygienic piping design is important for the cleanability of the line.

When designing branches, valve connections, sampling points, instrumentation connections, and equipment inlets-outlets, unnecessary pipe extensions should be avoided. Connection geometry should be evaluated in accordance with the relevant project standard and process requirements, and the formation of areas that the cleaning fluid cannot reach should be limited.

Correct determination of the pipeline’s slope and drainage direction is also important. Proper design helps reduce undesired accumulation of process fluid or cleaning fluid in the line. The slope value to be used is not fixed for all systems; it should be determined according to the pipe diameter, process, drainage arrangement, and the relevant technical specification.

Therefore, slope should be evaluated not merely as a physical angle given during assembly, but as a criterion that must be addressed from the design stage of the pipe route onward.

How Is Piping Designed Suitable for a CIP System?

CIP (Clean-in-Place) is a method that enables process equipment and pipelines to be cleaned within a defined cleaning cycle without the need for dismantling. In systems to which CIP will be applied, the piping geometry must support the cleaning process.

In CIP design, the ability of the cleaning fluid to reach the relevant pipelines and equipment surfaces, the creation of adequate flow conditions, and the ability of the system to be properly drained after the cycle are evaluated. Therefore, pipe diameters, valve placement, line route, equipment connections, slopes, and drainage points must be addressed together.

The temperature, duration, chemical concentration, and flow conditions in the cleaning cycle are determined according to the process requirements. The compatibility of the cleaning chemicals used with the pipe, gasket, and other equipment materials must also be evaluated.

The mere presence of a cleaning unit is not sufficient for CIP to be applicable. The design of the piping system must be compatible with the requirements of the CIP cycle in terms of the access of the cleaning fluid and its removal from the system.

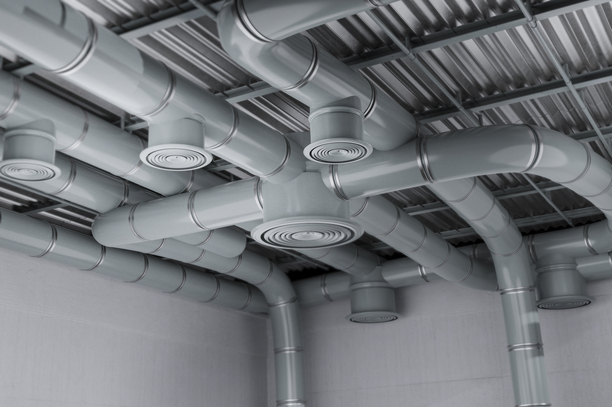

Hygienic process piping system

What Should Be Considered in Orbital Welding and Hygienic Pipe Connections?

In hygienic process piping, weld zones are among the critical points in terms of the internal surface integrity and cleanability of the pipe. Unsuitable welding applications may cause irregularities, burrs, discoloration, or areas that are difficult to clean on the internal surface.

Orbital welding is one of the methods that enables stainless steel pipes to be joined in a controlled and repeatable manner. Especially in applications with high hygiene requirements, the controllability of welding parameters can help achieve consistent results in the same type of connections.

Welding quality is not determined solely by the welding method used. Preparation of pipe ends, alignment, welding parameters, shielding gas application, and post-weld inspections must be evaluated together.

Where required by the project, surface treatments may be applied to the weld zones. The objective is to make the internal surface of the pipe compatible with process and cleaning requirements. The inspections and surface treatments to be applied after welding should be determined according to the relevant project standard and technical specification.

Which Inspections Are Performed After Hygienic Process Piping Assembly?

After assembly is completed, the compliance of the hygienic process piping system with project and process requirements must be checked. The scope of the inspections may vary according to the intended use of the system, design conditions, and the technical specification.

In this context, topics such as pipe route, connections, valve and equipment placement, weld zones, drainage points, and leak-tightness can be examined. Where required by the project, pressure or leak-tightness tests, weld inspections, and other technical verifications may be carried out.

In systems using CIP, it should also be evaluated whether the cleaning cycle can be applied appropriately to the designed lines and whether the system can be adequately drained after the cycle. In this way, not only the completion of the assembly but also the readiness of the piping system to operate under the intended process conditions is checked.

SS Proje Hygienic Process Piping Solutions

SS Proje works on stainless steel pipelines, hygienic connections, and process piping details according to the technical requirements of the project in hygienic process piping applications. Process conditions, cleaning method, and relevant technical specifications are taken into account during the design and application stages.

Especially in food, beverage, and pharmaceutical processes, the piping system must be evaluated not merely as a line providing flow, but as a whole in terms of cleanability, drainage, surface quality, welding, and connection integrity.
